BFB 3000 Operations manual

Having completed the assembly of your BFB 3000 you are now ready to connect the power, plug the transformer into the main

(outlet) socket and plug the 2.1mm power plug into the PCB. The red power indicator LED will light and the screen will display the

start-up messages and then show the main menu. If the SD card is inserted the SD card LED will light

First power up

Warning: when the PCB is

powered DO NOT

disconnect the extruder or

any of the stepper motors

this will damage the stepper

driver chips.

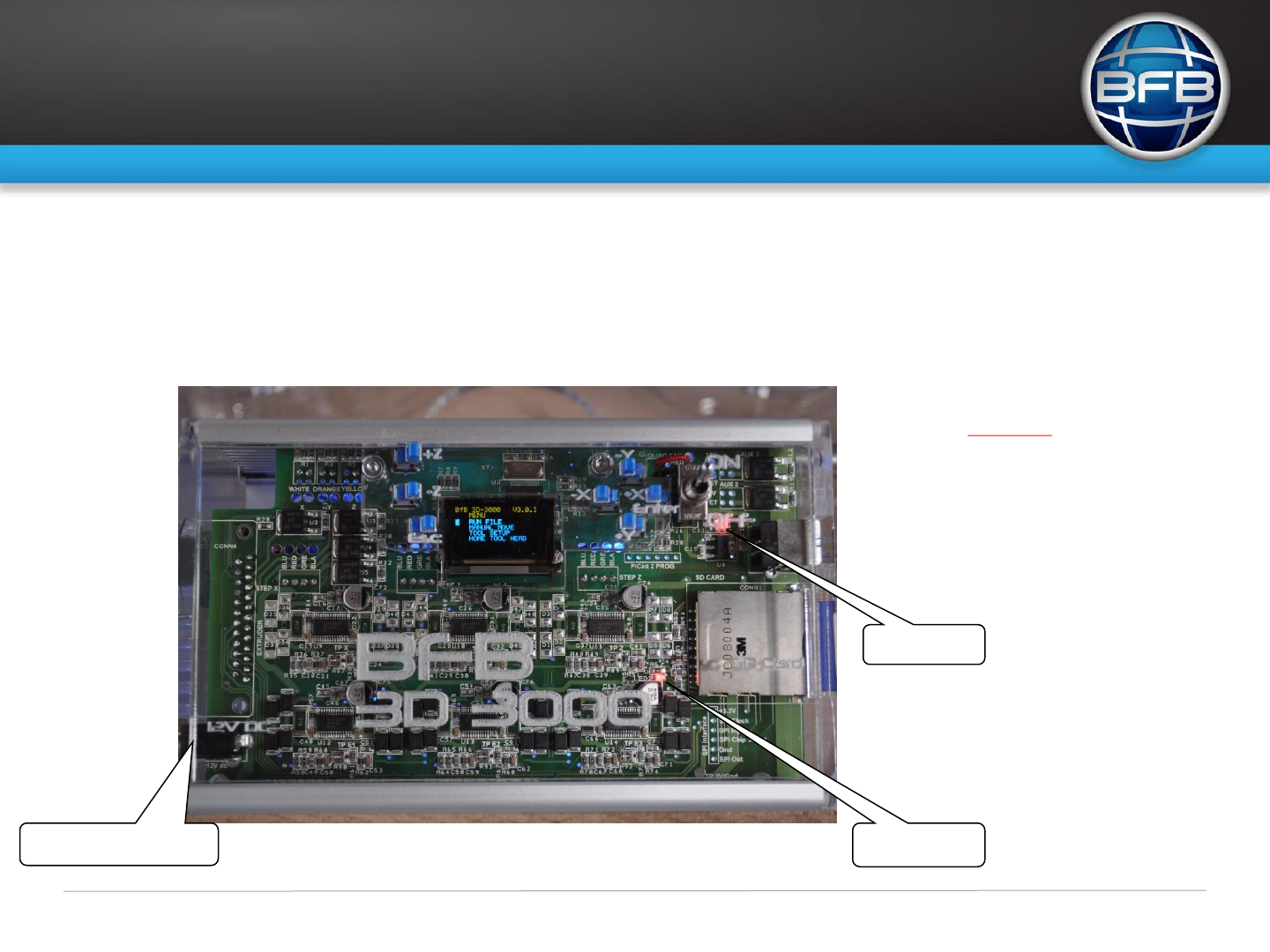

Power LED

SD Card LED

12V dc Connector
