BFB 3000 Operations manual

Levelling the bed

step

• Finally move the tool head to the Front Centre of the print bed

• Adjust the front bed adjuster by turning the hex bolt with the 4mm

allen key (Fig.2) until the scraper just slides under the nozzle

with very slight resistance.

• Make sure it is not compressing the levelling springs.

When all three points are complete repeat whole cycle to recheck as a large adjustment of one spring can affect a previously

set spring. Keep doing this until all three springs are correct with no further adjustment needed.

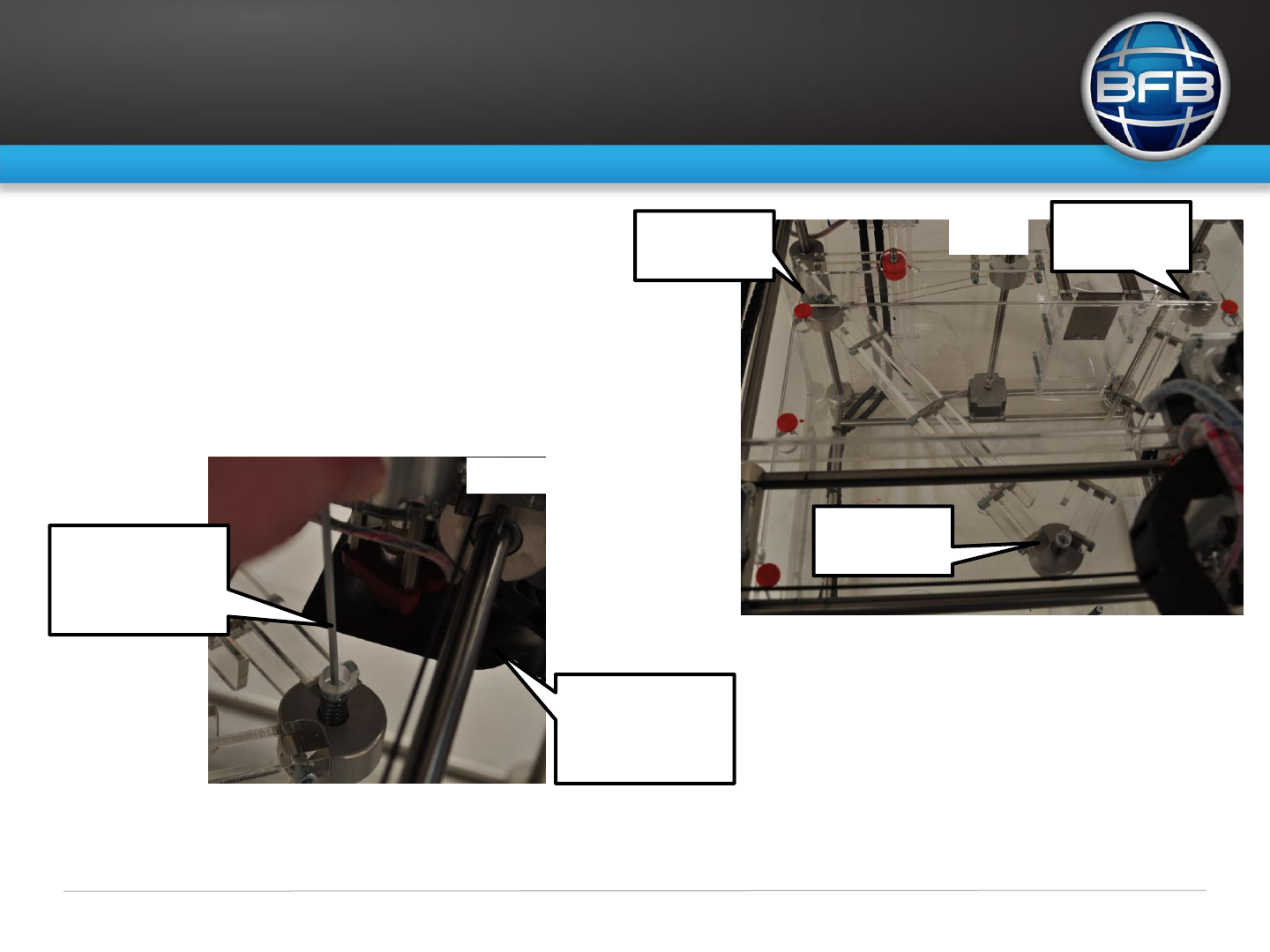

Rear left

corner and

bed adjuster

Rear right

corner and

bed adjuster

Front bed

adjuster

Fig.1

Allen key

adjustment for

levelling the bed

Light resistance

between the

scraper, the bed

and the nozzle

Fig.2
